When it comes to choosing the right wire nut size for your electrical project, understanding nut colors is crucial. Each color represents a specific size range, making it easier to match the wire nut to the wire gauge you are working with. Here is a quick breakdown of some common nut colors and their corresponding sizes:
Red: Typically used for smaller wire sizes, ranging from 22-16 AWG.

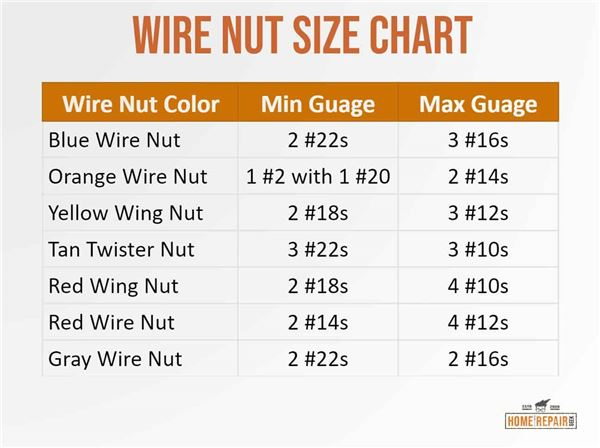

Nut Color Wire Nut Size Chart
Yellow: Suitable for medium wire sizes, ranging from 22-14 AWG.
Blue: Designed for larger wire sizes, ranging from 14-10 AWG.
Orange: Used for even larger wire sizes, ranging from 10-8 AWG.
Choosing the Right Nut Size
Now that you understand the different nut colors and their corresponding sizes, it’s important to choose the right nut size for your specific project. Using a wire nut size chart can help you determine the best option based on the wire gauge you are working with. Here are a few tips to keep in mind when selecting a wire nut size:
Match the wire gauge: Make sure the wire nut size matches the wire gauge you are working with to ensure a secure connection.
Consider the number of wires: If you are connecting multiple wires together, choose a wire nut size that can accommodate all of them comfortably.
Check the manufacturer’s guidelines: Some wire nut manufacturers provide specific recommendations for which sizes to use with their products, so be sure to consult their guidelines.
By following these guidelines and using a nut color wire nut size chart, you can confidently choose the right nut size for your electrical project. Remember, safety should always be a top priority when working with electrical connections, so choose wisely and double-check your work before powering up.
With this comprehensive guide to nut color wire nut size charts, you’ll be well-equipped to tackle any electrical project with confidence and precision. Happy wiring!
Download Nut Color Wire Nut Size Chart

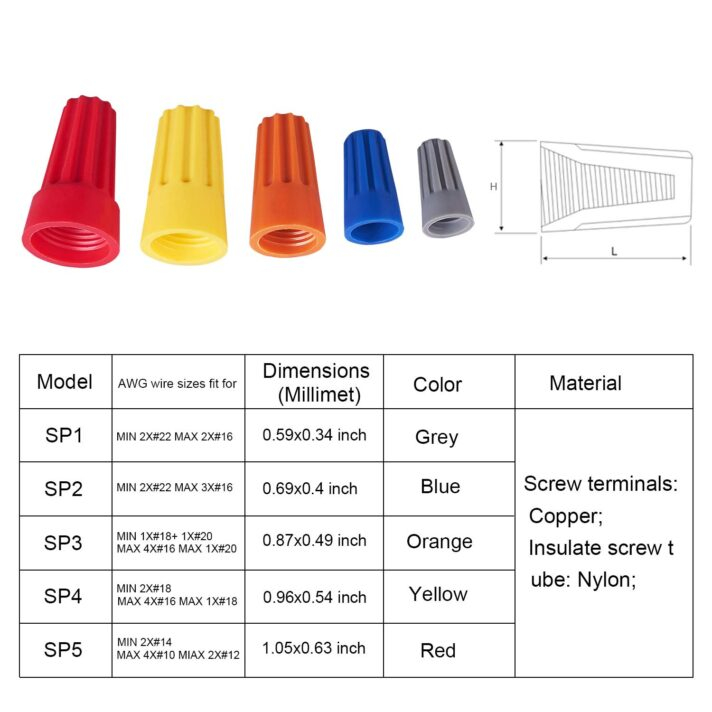

Understanding Wire Nut Size Chart Kadinsalyasam

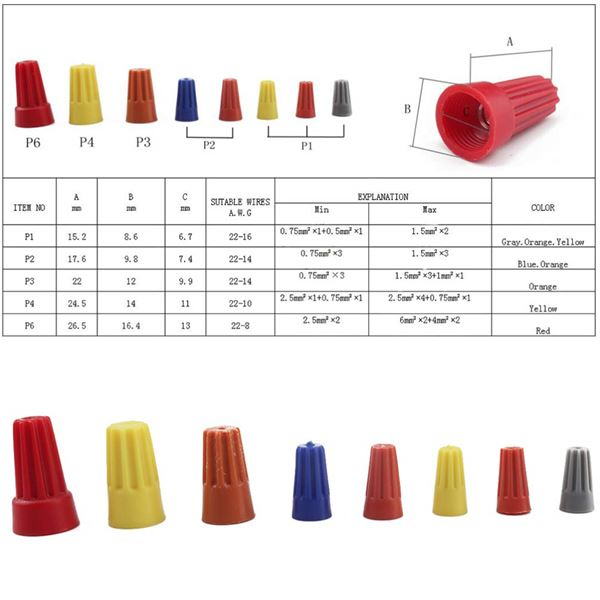

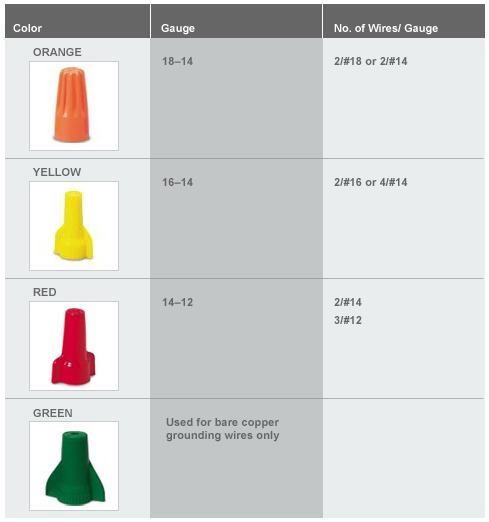

Nut Color Wire Nut Size Chart
