Tig welding is a popular welding technique known for its precision and reliability. One of the key components in Tig welding is the tungsten electrode, which plays a crucial role in creating a stable arc and producing high-quality welds. The color of the tungsten electrode tip is an important factor in determining its performance and suitability for different welding applications.

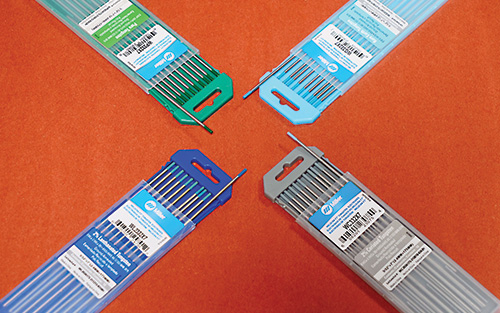

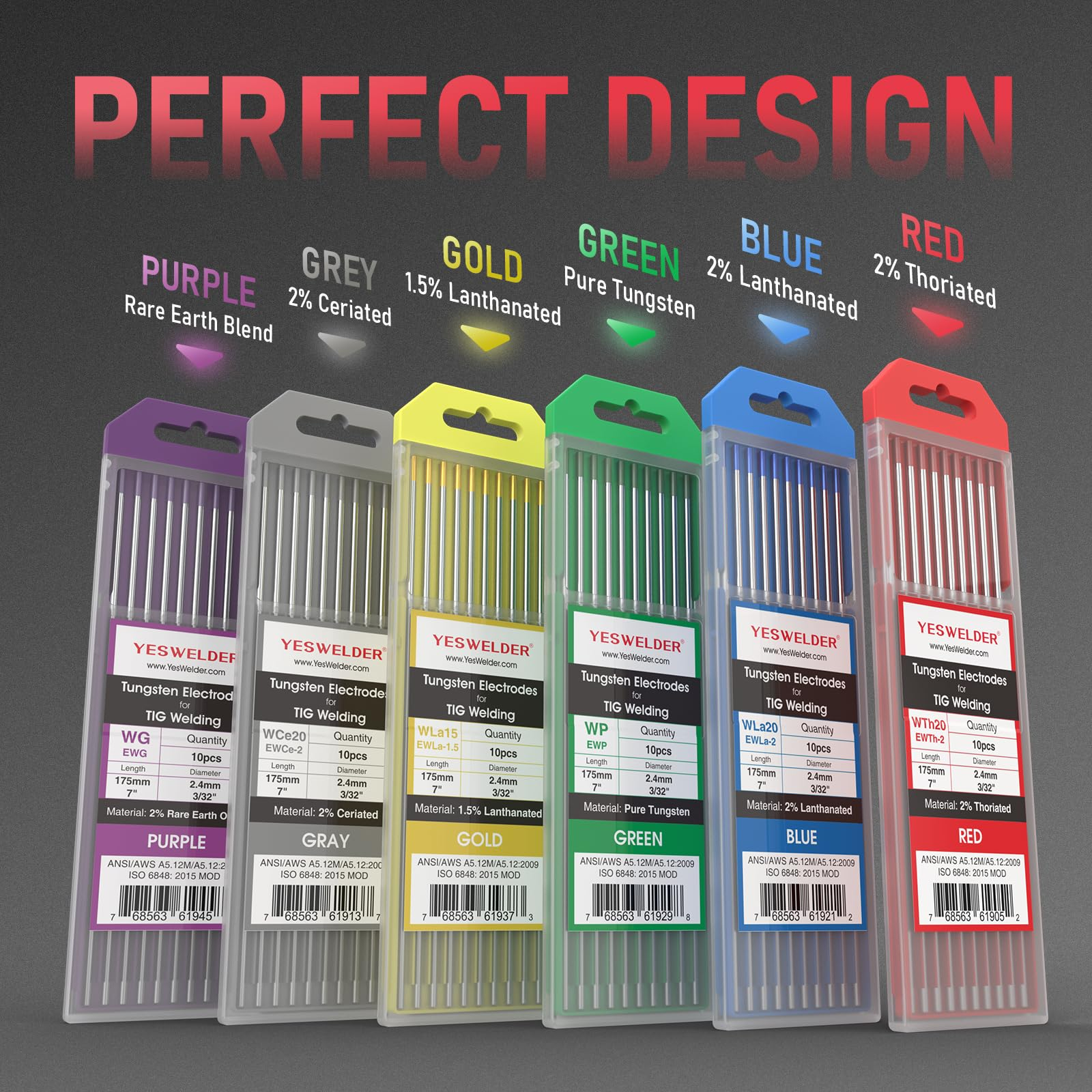

There are various colors of tungsten electrodes available, each serving a specific purpose in the welding process. The most common colors include:

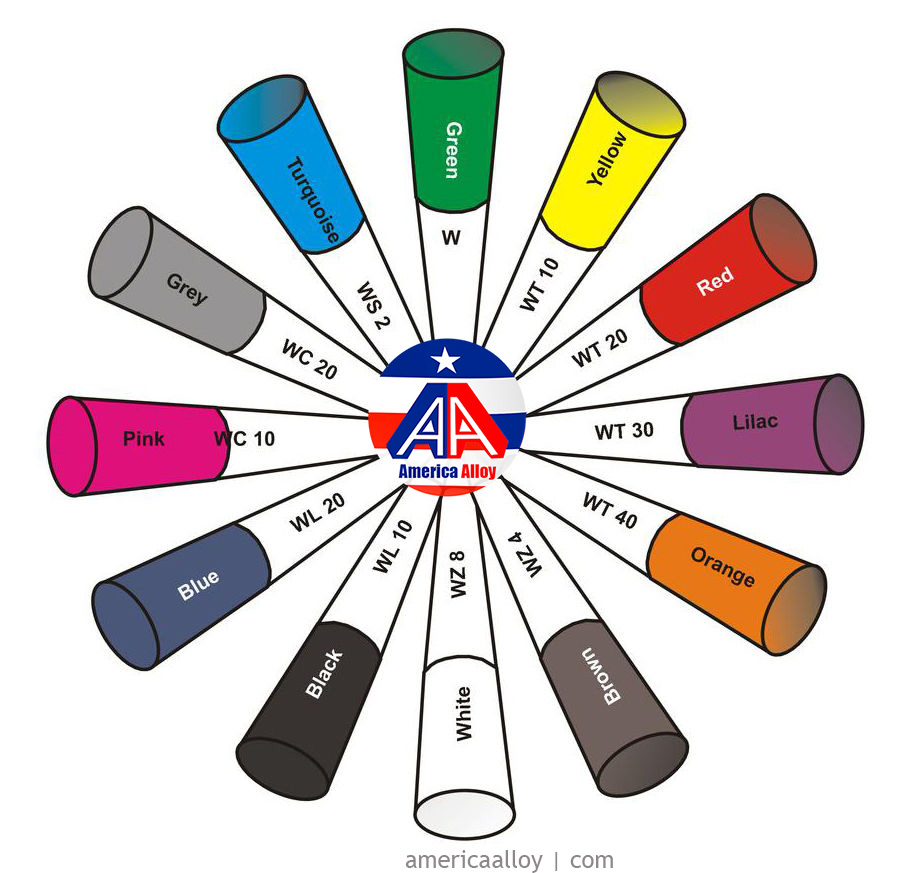

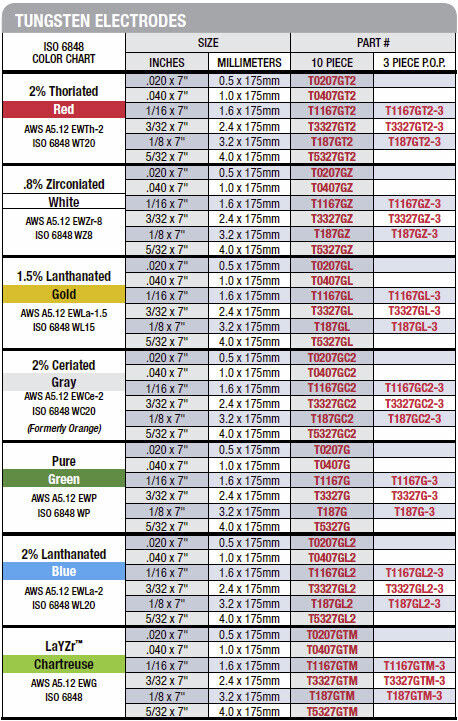

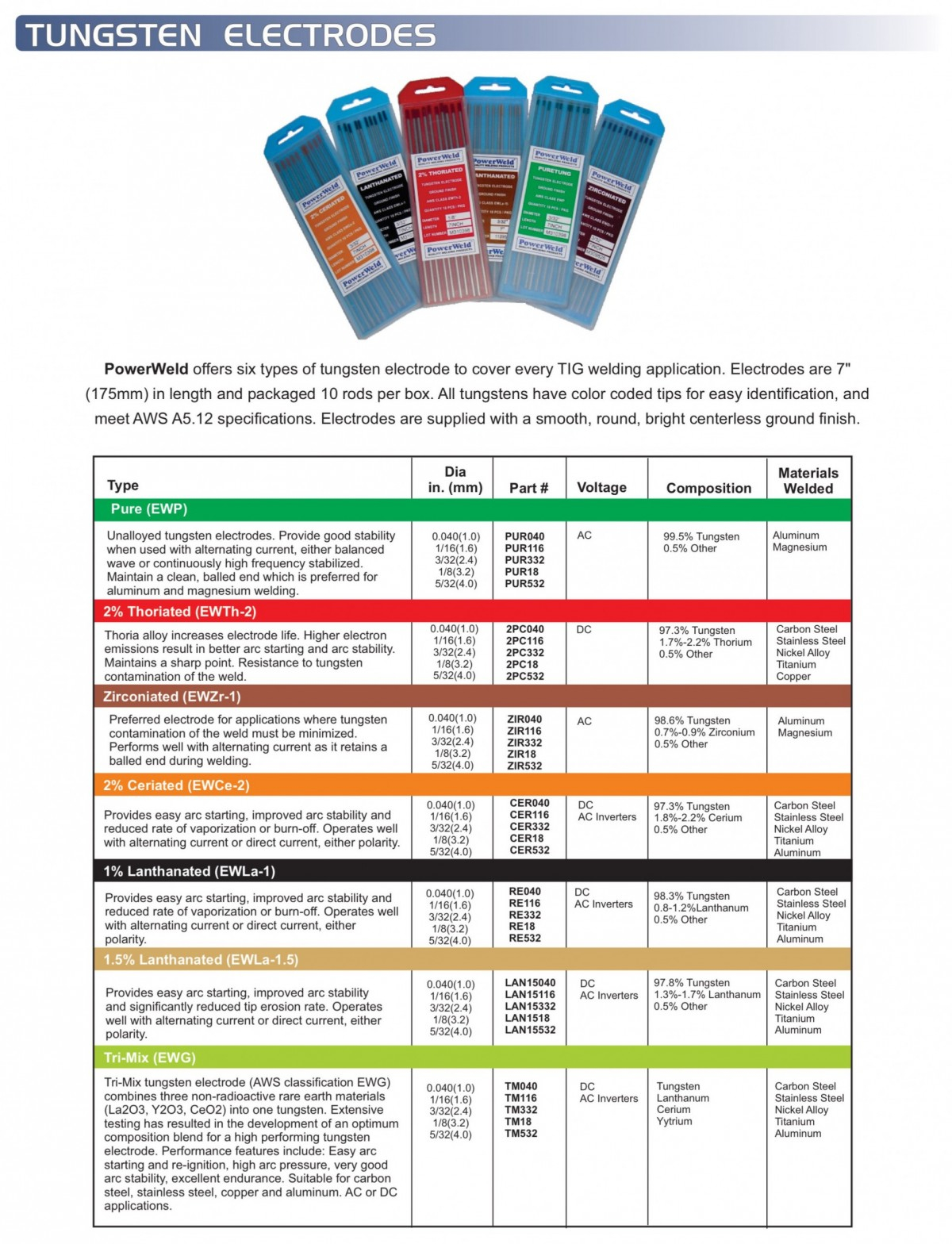

Tig Welding Tungsten Color Chart
- Green: Green tungsten electrodes are made from pure tungsten and are suitable for welding aluminum and magnesium alloys.
- Red: Red tungsten electrodes are made from thoriated tungsten and are ideal for welding steel and stainless steel.
- Grey: Grey tungsten electrodes are made from ceriated tungsten and are suitable for welding non-ferrous metals.
- Blue: Blue tungsten electrodes are made from lanthanated tungsten and are versatile, suitable for a wide range of welding applications.
Choosing the Right Tungsten Color
When selecting a tungsten electrode color, it is essential to consider the type of metal being welded and the welding process used. Using the wrong tungsten color can lead to poor weld quality, electrode contamination, and increased difficulty in striking and maintaining an arc.
By referring to a Tig welding tungsten color chart, welders can easily determine the appropriate tungsten color for their specific welding needs. This chart provides a visual reference for matching the tungsten color with the type of metal being welded, ensuring optimal weld quality and performance.
